Automatic Street Light Using LDR (Light Dependent Resistor)
Build an automatic street light controller using an LDR sensor. This project demonstrates how to use a Light Dependent Resistor to automatically turn street lights ON at night and OFF during the day, saving energy and enabling smart automation. Includes circuit diagram, video demonstration, and step-by-step guide.
Principle of Operation
The LDR (Light Dependent Resistor) changes its resistance based on the intensity of light falling on it. In bright light, its resistance drops, while in darkness, the resistance increases. This property is used to sense day and night conditions. The voltage divider formed by the LDR and a fixed resistor provides a voltage that is used to control a transistor switch, which in turn controls the lamp or street light. The LDR's resistance drops, reducing the base voltage and turning the lamp off.
How to Build an Automatic Street Light with LDR
- Build the Voltage Divider: Connect the LDR and resistor in series on a breadboard.
- Connect the Transistor: Attach the middle point of the divider to the base of a transistor.
- Add the Lamp: Connect a lamp (or LED) to the collector circuit with a suitable power supply.
- Test the Project: When the light level drops, the lamp should turn on automatically.
Tip: Adjust the resistor value for sensitivity. Use this circuit for model streets, gardens, or home automation!
Circuit Explanation
During the day, the LDR's resistance drops, reducing the base voltage and turning the lamp off.
Materials Needed
- LDR (Light Dependent Resistor)
- Resistor (10kΩ recommended, but can be adjusted)
- Transistor (e.g. BC547 or similar NPN)
- LED (optional, for visual indication)
- Power supply (e.g. 9V battery or a DC power supply)
- Lamp (e.g. an incandescent bulb or an LED module)
- Breadboard and connecting wires

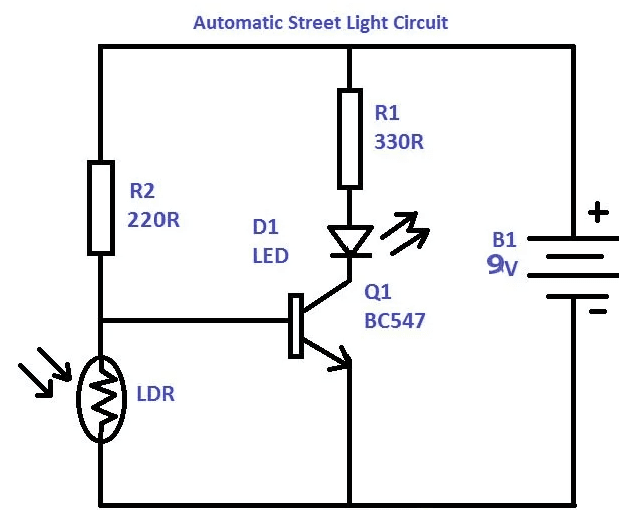

Circuit Diagram
Troubleshooting & Tips
- Ensure all connections are secure and correct as per the circuit diagram.
- If the lamp does not turn on, try covering the LDR completely to simulate darkness.
- Use a multimeter to check voltages at the transistor base and collector.
- Try different resistor values for optimal sensitivity in your environment.
- For higher loads, use a relay or a power transistor (e.g., TIP122).
Working Model
Applications & Advantages
- Energy saving by automatic control of street lights
- Low cost and easy to implement
- Useful for smart cities and home automation
- Hands-on educational electronics project
- Demonstrates real-world sensor automation
Real-World Use Cases
- Automatic street lighting in smart cities and rural areas
- Garden and pathway lighting for homes and parks
- Solar-powered lighting systems for energy efficiency
- Night lamps for children’s rooms
- Industrial automation for safety lighting
Frequently Asked Questions (FAQ)
- Q: Can I use a different transistor? A: Yes, any general purpose NPN transistor like BC547, BC548, or 2N2222 will work.
- Q: Why is my lamp not turning on? A: Check your wiring, make sure the LDR is exposed to darkness, and verify the resistor value.
- Q: Can this circuit handle high power street lamps? A: For higher loads, use a relay or a power transistor suitable for the lamp.
- Q: How does the LDR work? A: The LDR changes resistance based on light. In darkness, resistance increases, triggering the lamp to turn on.
